PMP-500 Pump, G 1/4 BSP

RoHS Certified
SKU: PMP-500
Availability: In Stock

Orders for UPS placed in the next 9 hours, 17 minutes ship today.
Price:
1 at $76.99
10 at $75.07
25 at $73.14
50 at $71.22
100 at $70.64
250 at $69.68
500+ at $69.11
Qty:   Add to Cart


   - OR -
Add 12V Speed Controller?
Add Fittings?

The Koolance PMP-500 offers a high flow rate and very high static head pressure at just 12V. A mounting bracket is included.

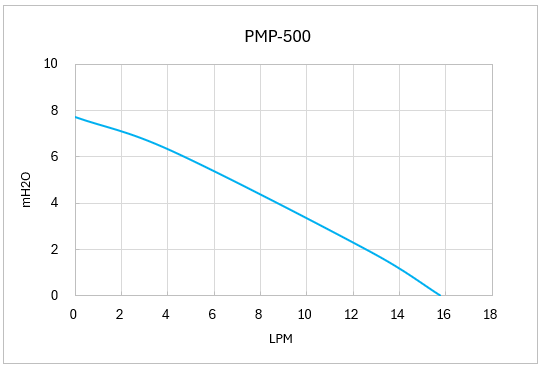

  • Maximum Flow Rate: 16L/min (4.2 gal/min)
  • Maximum Head Pressure: 7.5m (24.6ft)
  • Motor: Brushless DC
  • Power Consumption (at max): 32W
  • Voltage Range: 6 to 12 VDC
  • Maximum Temperature: 60°C (140°F)
  • Electrical Connector: 4-pin Molex power supply connection + 3-pin (single lead) tach
  • Hose Connections: G 1/4 BSPP Threads
  • Noise: Less than 50dBA
  • Weight: 454g (1lbs)

Please note, the CTR-SPD12X2 and TMS-205 are unable to support this pump due to power constraints. For compatible speed control the CTR-SPD1224M is available.

General
Weight 1.20 lb (0.54 kg)
Max Pressure @ 25°C 1.5kgf/cm2 (21.3psi)
Max Temperature 60°C (140°F)
Pumps
Max Flow Rate 16L/min (4.2GPM)
Max Power 32W
Max Static Head 7.5m (24.6ft)
Native Hose Connection G 1/4 BSP Threads
Speed Knob
Tachometer yes
Type Magnetic Centrifugal
Voltage 6-12 VDC
Dimensions
Diagrams / Models (See Files Tab for Diagrams and 3D Models)


Diagram - pmp-500_d1.gif
3D Model - pmp-500.step.zip
Tags: Pump,

Liquid Coolants

Koolance's product warranty does not cover the use of 3rd-party coolants, coolant additives, or corrosion. Koolance LIQ-702 or LIQ-705 coolants are strongly recommended to help avoid issues with mixed metals or biological growth. Additionally, do not use aluminum with bare (unplated) copper or bare (unplated) brass in the same system. Do not use silver with nickel in the same system.
