Home  •  Reservoirs  •  80mm OD Cylindrical  •  Reservoir Top with Dual Fill Ports (80mm OD)

Reservoir Top with Dual Fill Ports (80mm OD)

Part No. COV-TKTOP2X70

Reservoir Top with Dual Fill Ports (80mm OD)
Reservoir Top with Dual Fill Ports (80mm OD)
Ship From?Price (1pc)Stock
USA FlagUSA$17.2420
S.Korea FlagS.Korea$14.9930
Volume Pricing USA
Qty 1 : $17.24/ea
10 : $16.69
25 : $16.15
50 : $15.60
100 : $15.44
250 : $15.17
500+ : $15.00
Volume Pricing S.Korea
Qty 1 : $14.99/ea
10 : $14.52
25 : $14.04
50 : $13.57
100 : $13.43
250 : $13.19
500+ : $13.05
RoHS CertifiedREACH Certified

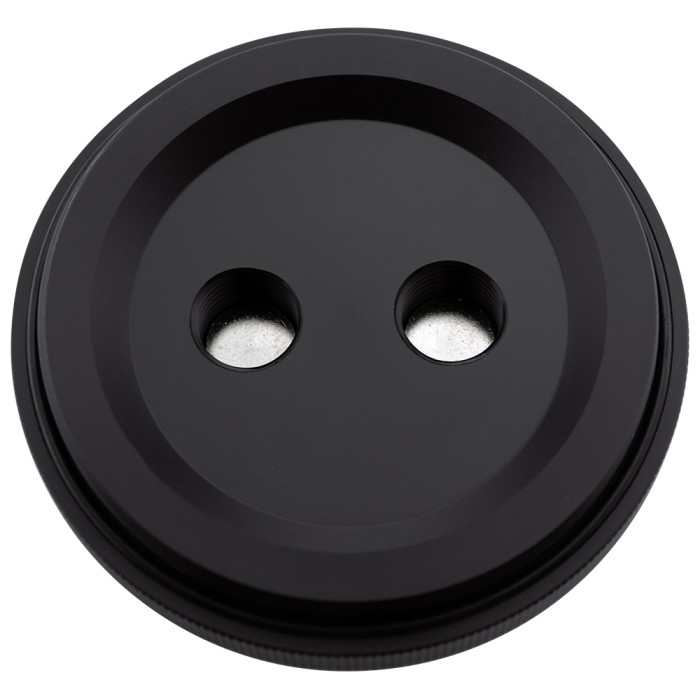

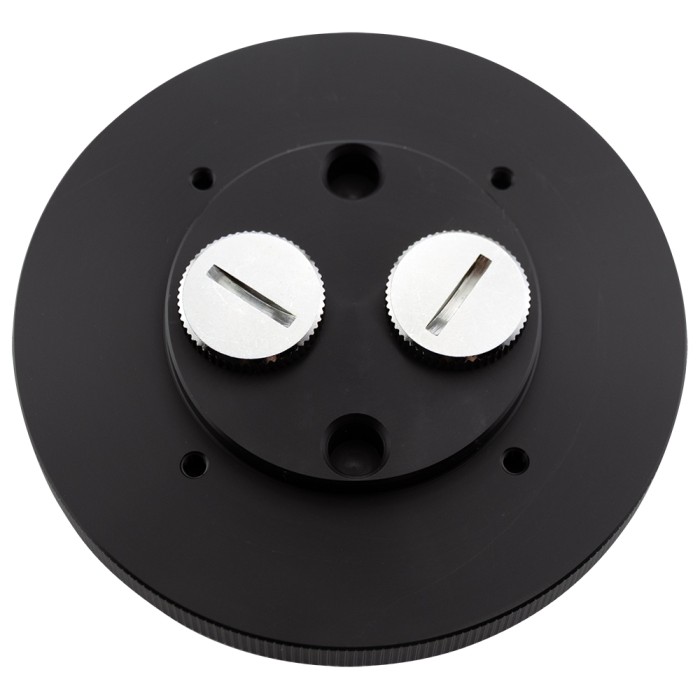

Acetal reservoir top for Koolance 80mm OD reservoir bodies. Dual G 1/4 BSPP fill ports with nickel-plated brass plugs.


General
Weight 0.22 lb (0.10 kg)
Fitting Thread G 1/4 BSPP
Max Pressure Tolerance @ 25°C 2kgf/cm2 (28.5psi)
Max Temperature Tolerance 80°C (176°F)
Dimensions
Diagrams / Models (See Files Tab for Diagrams and 3D Models)
Diagram - cov-tktop2x70_d1.pdf
3D Model - cov-tktop2x70.step.zip

Liquid Coolants

Koolance's product warranty does not cover the use of 3rd-party coolants, coolant additives, or corrosion. Koolance LIQ-702 or LIQ-705 coolants are strongly recommended to help avoid issues with mixed metals or biological growth. Additionally, do not use aluminum with bare (unplated) copper or bare (unplated) brass in the same system. Do not use silver with nickel in the same system.
